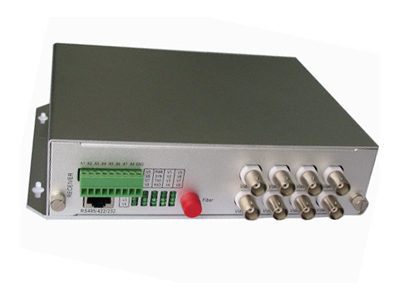

HX-DV801DWF 8-Channel Video + 1-Channel Reverse Data Optical Transmitter & Receiver

type
of
optical
fiber
interface

Trans-
mission
wave-
length
(nm)

Trans-
mission
power
dBm

Receiving
Sensi-
tivity
dBm

Optical
Saturation
dB

Trans-
mission
distance

Optical
Loss
dBm/Km

Multi mode

FC

850

-18.5~-14

-35

-8

0~2

1

FC

1310

-19.5~-16

-36

-9

0~3

1

Single mode

FC

1310

-15~-10

-34

-8

0~20

0.5

FC

1310

-12~-5

-36

-3

0~40

0.5

FC

1550

-5~0

-38

+2

0~60

0.25

Channel

8

Connector

BNC

Input/output impedance

75 Ω (unbalanced)

Input/output amplitude

1VP - P (peak value)

Bandwidth

8MHz

Differential gain

(10%-90%APL) DG <0.5% (typical value)

Differential phase

(10%-90%APL) DP <0.4°( typical value)

Video SNR

S/N ≥ 70dB (maximum optical link path loss)

Channel

1 reverse

Interface terminal

RJ-45

Interface signal

RS-232、RS-422(full duplex)、RS-485 (2/4 wiring system)

Bit rate

0～256Kbps

Error bit rate

≤10^-9

Operating temperature

-30ºC～+75ºC

Storage temperature

-40ºC～+85ºC

Relative humidity

0-95% Non-Condensing

Power voltage

AC220V/50Hz

MTBF

≧10⁵ hours
