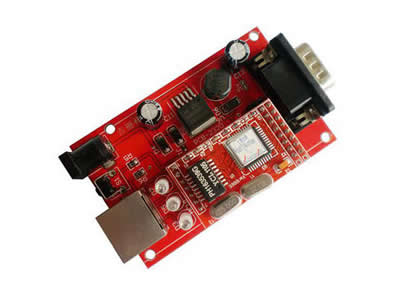

TU8004-L Embedded DUAL RS485 Serial to Ethernet Device Server Module

Specification & Feature

Feature

10/100M adaptive Ethernet interface
support AUTO MDI / MDIX, Use crossover cable or parallel cable connection
115.2kbps and more baud rate can be selected in manual or automatic settings ;
Working method: TCP Sever, TCP Client, UDP mode
supports virtual serial port
working port , destination IP address and port number are our management software can easily set up
configuration module parameters through the serial port by AT commands
disconnected from the network can be automatically disconnected , ensure that the entire network and reliable TCP connection ;
The flexible serial data sub-frame is set to meet user demand for subcontracting ;
Provide supporting TCPIP dimensional machine programming information ;
UDP packet radio mode banned , anti-interference ability than similar products ;
In the case of high-speed data transceiver , heat is still relatively low.
support the DNS dynamic domain remote connections.
2 serial port can sending and receiving data at the same time

Specification

UART1 Baud Rate : 300bps ~ 1.8432Mbps
Parity: None , Odd , even parity
data bits : 7,8 bit
Stop bit : 1,2 bit
Flow control: no flow control , RTS / CTS
Baud rate : 1.2kbps ~ 4.8kbps
Parity: No parity
data bits : 8 bit
Stop bit : 1,2 bit
Flow control: no flow control
working environment : -45 ~ 85 â„ƒ, 5 ~ 95%
humidity Storage environment : -55 ~ 125 â„ƒ,, 5 ~ 95% humidity
Interface features: network interface complies with TCP / IP standard protocol , in line RS232/485/422 serial protocol
Electrical Interface : Network interface bit RJ45 socket , serial interface bit 4 Terminal Block Interface
Transmission medium : UTP shielded twisted pair cable
working method: TCP Server mode , TCP Client mode , UDP mode , virtual serial port mode
Transmission distance : RS485/422 interfaces 1200m; RS232 interfaces 15m
Power Supply: 9~30V
