HXSP-2108E-M TTL Serial to Ethernet Module

TTL Serial to Ethernet Module
Model: HXSP-2108E-M
Name: TTL Serial to Ethernet Module

Specification
  • Operating Voltage: 4.5~5.5V
  • Current Consumption: 15mA
  • Operating Temperature: -10oC ~ 70oC
  • Data Input / Output Voltage Level(TTL): 4.9V/0.1V
  • Data Rate: 300~115200bps

Feature
  • Engineered for bridging serial communication to the Ethernet network
  • Specifically designed for interfacing with microprocessor as web enabled electronic device via serial interface
  • I/O pins are TTL and CMOS compatible
  • Miniature size of 42 x 88 x 9 mm
  • Low power consumption (Typ: 15mA)
  • Wide operating temperature range of -10 to +70 degree C

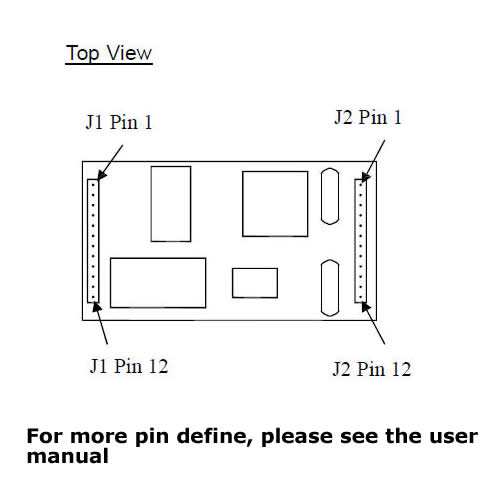

Pins Assignment
serial to ethernet module pins define

User Manual
user manual of TTL Serial to Ethernet Module HXSP-2108E-M_serial_to_ethernet_module.pdf

Driver & Software
software and driver of TTL Serial to Ethernet Module HXSP-2108E_software.zip     software and driver of TTL Serial to Ethernet Module VSP_driver.zip
