• RS-232/RS-485/RS-422 to WIFI 802.11a/b Wireless Device Server

HXSP-2108W

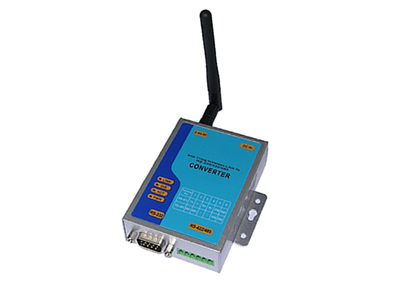

RS-232/RS-485/RS-422 to WIFI 802.11a/b Wireless Device Server

The serial device networking (TCP/IP) has become a trend of industrial on-site networking. However, the on-site wiring construction and alternation cost have always been a bottle neck of serial device networking. With the growingly mature WLAN technology and falling cost of related hardware, the advantage of serial device networking has become quite obvious, which makes serial device wireless networking a must.
HXSP-2108W wireless serial port server offers wireless transceiver and high speed serial port, conforming to IEEE802.11b wireless network communication standard. The maximum standard transmission distance is 300M and further wireless communication can be achieved by additional high gain external antenna, which can not only prevent difficult wiring but also lower construction cost, specially suitable for devices like industrial environment and factory automation system, on-site monitoring system, etc.


  • Specification & Feature
    802.11b industrial standard wireless network interface can achieve easy access to WLAN via wireless network card or AP
    The built in web server can be used for remote configuration, monitoring and maintenance of serial devices
    Offer 1- RS-232/422/485 serial
    Support TCP Server, TCP Client, UDP, Telnet, TFTP, DHCP, SNMP
    Support VPORTS mode, offer virtual serial port software
    Watch Dog time: 1 second automatic hardware reset
    15KV ESD surge protection
    Integrated wireless net and serial port state LED display
    Power supply voltage: +9V to +36VDC.
    Working temperature range: 0ºC to +50ºC.
  • Datasheet
    datasheet of RS-232/RS-485/RS-422 to WIFI 802.11a/b Wireless Device Server HXSP-2108W_Datasheet.pdf
