• Embedded TTL Serial to Ethernet Device Server Module

TU8005

Embedded TTL Serial to Ethernet Device Server Module



  • Specification & Feature

    Feature
    • 32-bit ARM CPU
    • LAN Ethernet: 10/100Mbps; Protection: Built-2KV electromagnetic isolation;
    • Serial rate: Baud rate: from 300 to 256kbps can be set up to 3Mbps;
    • Network Protocol: ETHERNET, ARP, IP, UDP, TCP;
    • Tools: Module configuration software, TCP / UDP test tools, serial debugging software;
    • Configurations: serial / network, free software packages.
    • Power supply: DC 4.8 ~ 5.4V
    • Size: 62mm x 25mm
    • Operating temperature: Industrial grade: -25 ~ 75 ° C.
    • Preservation of the environment: -40 ~ 85 ° C, 5 ~ 95% RH.

    Pictures

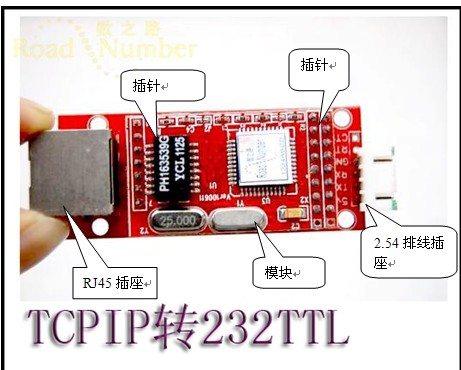

    TTL to ethernet

  • Datasheet
  • User Manual
  • Software
  • Order Information
